Hydrant & Sprinkler System
Double door fire hose box
- Size: 750 x 600 x 250 mm (standard size).
- Holds: Two 15m fire hoses and two nozzles.
- Material: 1.2mm Mild Steel or 3mm FRP
- Doors: Double vertical doors with clear glass windows.
- Lock: Emergency break-glass or simple cam lock.
- Paint: Powder-coated bright fire red
Single door hose box
- Single door hose box
Size: 600 x 600 x 250 mm. - Holds: One 15m fire hose and one nozzle
- Material: 1.2mm Mild Steel or 3mm FRP (rust-free).
- Door: Single door with a clear glass window.
- Lock: Break-glass latch or simple cam lock.
- Paint: Powder-coated bright fire red
63 mm Single Head Landing Valve specifications
- Size: 63 mm (2.5″) outlet.
- Inlet: 75 mm or 80 mm flanged.
- Outlet: Female instantaneous coupling.
- Material: Gunmetal or Stainless Steel.
- Handwheel: Cast Iron.
- Flow Rate: Minimum 900 LPM at 7 kgf/cm².
- Working Pressure: Up to 10 kgf/cm².
- Test Pressure: 21 kgf/cm² (Body)
63 mm Double Head Landing Valve
- Size: Dual 63 mm (2.5″) outlets.
- Inlet: 100 mm (4″) flanged.
- Outlet: Two female instantaneous couplings.
- Material: Gunmetal or Stainless Steel.
- Handwheel: Cast Iron (two separate wheels).
- Flow Rate: Minimum 1800 LPM (900 LPM per outlet) at 7 kgf/cm².
- Working Pressure: Up to 10 kgf/cm².
- Test Pressure: 21 kgf/cm² (Body)
Fire Brigade Two Way Inlet
- Inlets: Two 63 mm Male Instantaneous with non-return valves.
- Outlet: 100 mm flanged connection.
- Material: Gunmetal, Cast Iron, or Stainless Steel.
- Drain Valve: 1″ ball valve for residual water.
- Working Pressure: Up to 10 kgf/cm².
- Test Pressure: 21 kgf/cm²
Fire Brigade Three Way Inlet
- Inlets: Three 63 mm Male Instantaneous with non-return valves.
- Outlet: 100 mm (4″) or 150 mm (6″) flanged connection.
- Material: Cast Iron body with Gunmetal/Stainless Steel internals.
- Drain Valve: 1″ ball valve for draining residual water.
- Working Pressure: Up to 10 kgf/cm² (10 Bar).
- Test Pressure: 21 to 23 kgf/cm
Fire Brigade Four Way Inlet
- Inlets: Four 63 mm Male Instantaneous connections with non-return
valves (NRVs). - Outlet: 150 mm (6″) flanged connection.
- Material: SGI / Cast Iron body with Gunmetal or Stainless Steel internals.
- Drain Valve: 1″ ball valve to drain residual water.
- Working Pressure: Up to 10 to 15 kgf/cm².
- Test Pressure: 21 kgf/cm² (Body hydrostatic check)
63 mm RRL Hose Pipe
- Nominal Size: 63 mm (2.5″) internal diameter.
- Standard lengths: 15 meters or 30 meters.
- Jacket Material: 100% synthetic yarn weave (heat and abrasion-
resistant). - Internal Lining: Seamless reinforced rubber lining.
- End Couplings: 63 mm Instantaneous Male/Female type (StainlessSteel or Gunmetal).
- Working Pressure: 10 to 14 kgf/cm² (Bar).
- Proof Test Pressure: 21 kgf/cm².
- Bursting Pressure: 35 kgf/cm² (Type A) to 42 kgf/cm² (Type B)
Hose Reel Drum
- Hose Size: 19 mm or 25 mm internal diameter.
- Hose Length: 30 meters or 36 meters.
- Hose Material: Thermoplastic (IS 12585) or Braided Rubber
- Drum Sides: Mild steel sheets (18 SWG / 1.6 mm) finished in fire red.
- Mounting Types: Swinging type (180° swivel) or Manual Fixed type.
- Flow Performance: Minimum 24 LPM water flow rate with a 6-meter jet throw at 7 bar.
- Working Pressure: Up to 10 to 12 kgf/cm².
- Test Pressure: 21 kgf/cm² (Hydrostatic check).

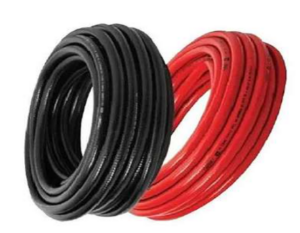

Thermoplastic Hose Pipe Type I & II
- Sizes: 12 mm, 20 mm, 25 mm (30m / 36m lengths).
- Construction: Thermoplastic inner/outer layers with textile reinforcement.
- Type I (Low Pressure): 6–8 bar working | 20–24 bar burst.
- Type II (Medium/Fire Reels): 10 bar working | 32–34 bar burst.
63 mm Fire Hose Delivery Coupling
- Size: 63 mm (2.5″) male and female instantaneous type.
- Material: Gunmetal (LTB-2), Stainless Steel (SS304/SS316), or Aluminium.
- Spring & Pins: Phosphor Bronze (for GM) or Stainless Steel.
- Washers: Natural or synthetic rubber (IS 937).
- Working Pressure: 10 to 14 kgf/cm² (Bar).
- Test Pressure: 21 kgf/cm² (Hydraulic)
63 mm Branch Pipe ; Nozzle
- Inlet Size: 63 mm (2.5″) male instantaneous coupling.
- Nozzle Sizes: 12 mm, 16 mm, 20 mm, or 25 mm orifices.
- Material: Gunmetal (LTB-2), Stainless Steel (SS304/SS316), or Aluminium alloy.
- Working Pressure: Up to 10 to 14 kgf/cm² (Bar).
- Test Pressure: 21 kgf/cm² (Hydraulic).
- Function: Short branch pipe used to direct high-velocity water jet
Adapter
- Size: 63 mm (2.5″) standard.
- Types: Double Male, Double Female, Flanged to Male, or Female to Male Threaded.
- Connection: Instantaneous quick-release plug type.
- Material: Gunmetal (LTB-2) or Stainless Steel (SS304 / SS316).
- Working Pressure: Up to 7 to 10 kgf/cm² (Bar).
- Test Pressure: 21 kgf/cm² (Hydraulic body test).
- Finish: Buff polished or chrome-plated external surfaces
Non return valve
- Size: DN15 to DN1200 (1/2″ to 48″).
- Flow: Automatic one-way flow; prevents backflow.
- Ends: Flanged, wafer, or threaded.
- Body: Cast Iron, Carbon Steel, or Stainless Steel.
- Seat: Rubber (NBR/EPDM) or Metal-to-Metal.
- Types: Swing check, dual-plate, or lift check.
- Pressure: PN10, PN16
- Design: Built to API 594, API 6D, or BS 1868.
Shut off nozzle
- Inlet: 63 mm (2.5″) standard coupling.
- Control: Adjustable jet, fog, and shut-off.
- Pressure: 7 bar working (16 bar max).
- Body: Gunmetal, Stainless Steel, or Aluminium.
- Lever: Heavy-duty ball valve handle.
- Tip: Impact-resistant rubber bumper ring.
Butterfly Valve
- Size: DN50 to DN1200 (2″ to 48″).
- Action: 90-degree twist opens or closes flow.
- Mount: Wafer, lug, or flanged connections.
- Body: Cast Iron or Ductile Iron.
- Disc: Stainless Steel (SS304/SS316).
- Seat: EPDM or NBR rubber liner.
- Pressure: PN10, PN16, or Class 150.
- Control: Hand lever or gear handle.
Ball Valve
- Size: DN15 to DN300 (1/2″ to 12″).
- Bore: Full bore for maximum unhindered flow.
- Ends: Threaded (female BSP/NPT) or flanged connections.
- Body: Brass, Stainless Steel, or Carbon Steel.
- Ball: Smooth, polished Stainless Steel (SS304/SS316).
- Seat: Teflon (PTFE) for zero-leakage sealing.
- Pressure: PN16, PN40, or Class 150/300.
- Control: Quick quarter-turn flat lever handle

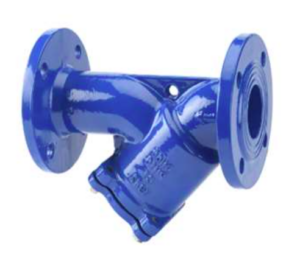

Y strainer
- Size: DN15 to DN300 (1/2″ to 12″).
- Shape: Y-pattern mechanical inline filter.
- Ends: Flanged, threaded, or grooved.
- Body: Cast Iron or Ductile Iron.
- Filter: Stainless Steel (SS304/SS316) mesh.
- Drain: Bottom plug for debris cleaning.
- Pressure: PN16 or 300 PSI.
- Coating: Red epoxy rust protection.

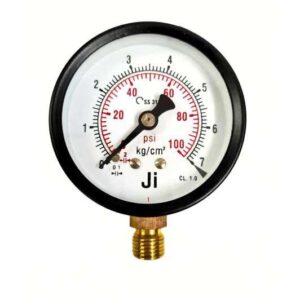

Pressure Gauges
- Dial: 100 mm (4″) or 150 mm (6″).
- Entry: Bottom or Back male thread (3/8″ or 1/2″).
- Range: 0 to 16 bar (0 to 210 PSI).
- Scale: Dual scale (bar and PSI).
- Accuracy: ±1.0% to ±1.6% full scale.
- Case: Stainless Steel (SS304).
- Type: Glycerin-filled to stop needle vibration.
Pressure switches
- Range: 1 to 16 bar adjustable.
- Switch: SPDT microswitch (Single Pole Double Throw).
- Deadband: Adjustable differential to stop rapid cycling.
- Rating: 10A to 15A at 250V AC.
- Entry: 1/4″ or 1/2″ female thread (BSP/NPT).
- Body: IP65 weatherproof die-cast aluminium cover.
- Type: Stainless Steel or Bronze bellows/diaphragm.
Ball type foot valve
- Size: DN25 to DN350 (1″ to 14″).
- Type: Free-floating, rubber-coated ball mechanism.
- Ends: Flanged entry with an integrated suction strainer.
- Body: Heavy-duty Cast Iron.
- Ball: Nitrile or EPDM rubber-coated steel core.
- Strainer: Cast Iron or Stainless Steel perforated screen.
- Pressure: PN10 or PN16 (up to 16 bar).
- Seal: Gravity-assisted, drop-tight rubber seating
Air release valve
- Pressure: 150 psi to 300 psi working pressure
- Inlet Size: 1/2″ to 1″ threaded, or 2″+ flanged
- Body: Ductile iron with epoxy coating
- Trim & Float: 304 or 316 stainless steel
- Seals: EPDM or NBR resilient rubber
- Standard: AWWA C512 compliance

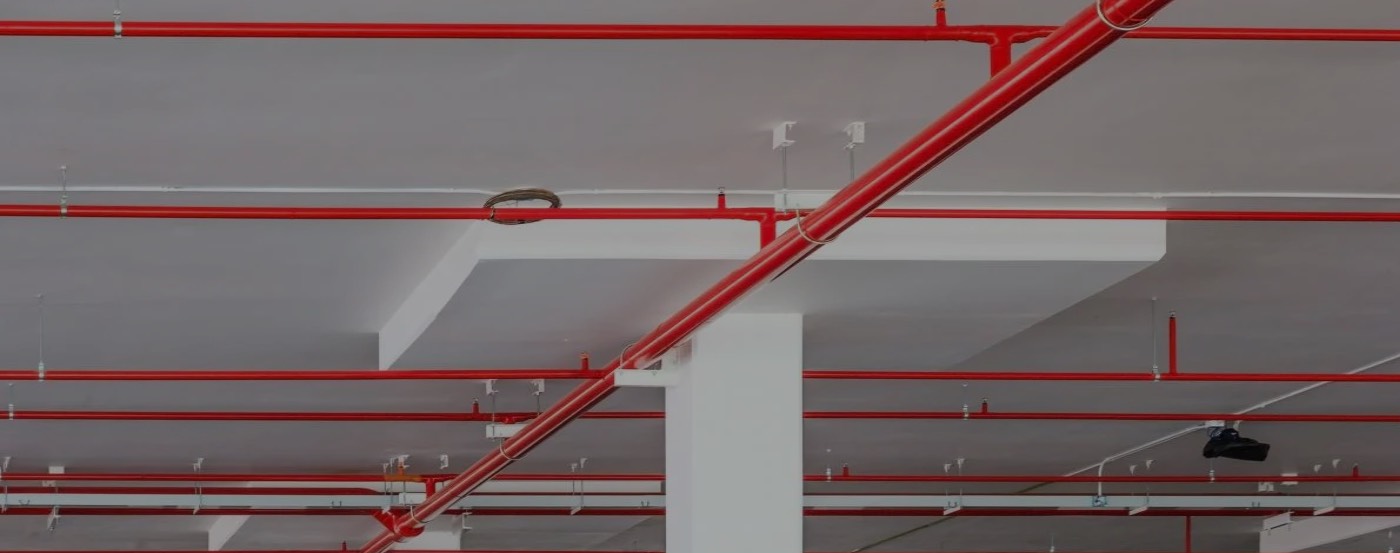

Sprinklers
- Types of Sprinklers: Pendent (Hangs down), Upright (Points up), Sidewall (Mounts on wall).
- Bulb Colors & Heat: Orange (57°C), Red (68°C – Common), Yellow (79°C), Green (93°C), Blue (141°C), Mauve (182°C), Black (204°C+).
- Finishes: Brass (Plain), Chrome (Shiny), White / Black (Painted).
Flexible sprinkler drop
- Hose: Braided & Un-braided stainless steel (304 grade).
- Pressure: Max 200 PSI working pressure.
- Kit: Hose, ceiling bracket, and bar.
- Inlet: 1″ male thread connection.
- Outlet: 1/2″ or 3/4″ reducer.
- Length: Standard 700mm to 1800mm lengths.
- Approval: UL listed or FM approved.
