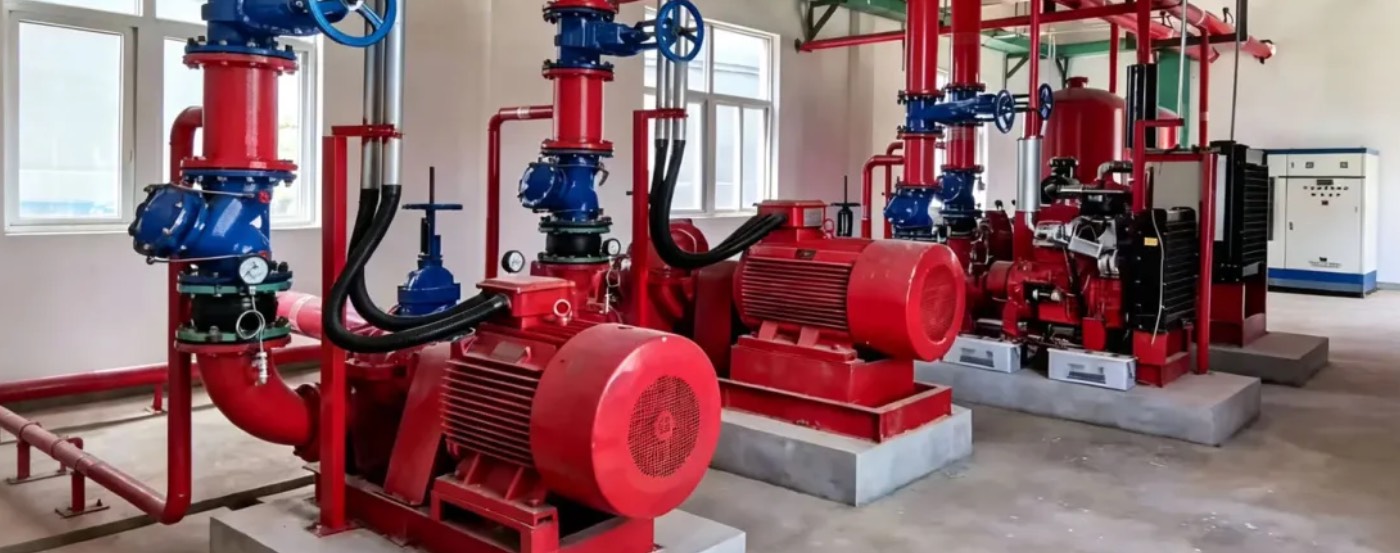

Fire Pumps
Main Fire Pump (Electric)
- Power: 30 HP to 75+ HP (Three-Phase, 415V, 2900 RPM).
- Flow: 1620 to 2280+ LPM (Liters per Minute).
- Pressure: 50 to 100+ meters head (5 to 10+ bar).
- Material: Cast Iron casing, Bronze impeller, Stainless Steel shaft.
Diesel Standby Pump
- Power: 30 to 100+ HP multi-cylinder diesel engine.
- Flow: Matches main pump capacity (1620 to 2280+ LPM).
- Control: Automatic 12V/24V DC battery starter panel during power failure.
- Fuel: 8 to 24-hour capacity diesel tank
Jockey Pump
- Power: 3 HP to 7.5 HP (Electric, 2900 RPM).
- Flow: 180 to 250 LPM (Low flow, high pressure).
- Pressure: Matches or exceeds main system pressure.
- Purpose: Maintains line pressure and handles minor leaks.

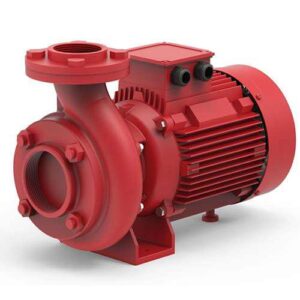

Booster Pump (Terrace)
- Power: 5 HP to 15 HP Monoblock or End-Suction type.
- Flow: 450 to 900 LPM.
- Pressure: 30 to 50 meters head.
- Purpose: Pressurises top-floor hydrants and sprinklers
