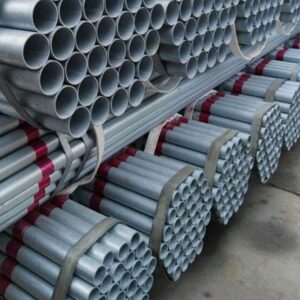

All type and sizes of GI C class Pipe
- Type: Heavy-duty, thickest grade GI pipe.
- Marking: Distinctive Red stripe on the body.
- Zinc Layer: 360 to 400 g/m² hot-dip galvanized.
- Pressure: Tested up to 50 bar (5.0 MPa).
- Length: Standard 6.0 meters per pipe.
- 1/2″ (15 mm): 3.25 mm thick | 1.42 kg/m
- 3/4″ (20 mm): 3.25 mm thick | 1.90 kg/m
- 1″ (25 mm): 4.05 mm thick | 2.97 kg/m
- 1-1/2″ (40 mm): 4.05 mm thick | 4.53 kg/m
- 2″ (50 mm): 4.47 mm thick | 6.17 kg/m
- 2-1/2″ (65 mm): 4.47 mm thick | 7.90 kg/m
- 3″ (80 mm): 4.85 mm thick | 10.10 kg/m
- 4″ (100 mm): 5.40 mm thick | 14.40 kg/m
- 6″ (150 mm): 5.40 mm thick | 21.20 kg/m
- 7” (200 mm): 6.0 mm thickness. 31.5 kg/m
